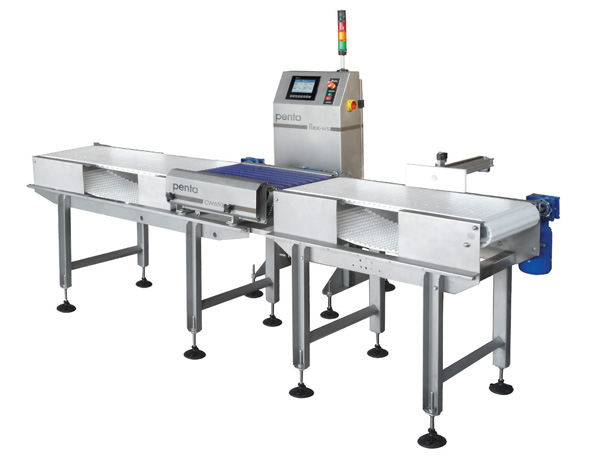

Weight controller

flexcw

You can count on reliability and robustness for the dynamic weight control for all kinds of products transported by a conveyor belt in any type of package or presentation.

  • Important economies of product saving and waste reduction
  • Available solutions for a wide range of weighing
  • Suitable to work under HACCP and ISO 22000 regulations
  • Great precision
  • Total sanitary design

Fact Sheet

SPECIFICATIONS
MODELS LIGHTWEIGHT
CW 450L - CW 600L
MEDIUM
CW 700M -CW 900M
HEAVY
CW 900P - CW 1200P
Weighing range (Kgs) 0 to 4 kgs 4 to 10 kgs 10 to 50 kgs
Accuracy (grs)* +/- 2 to 5grs (*) +/- 5 to 10 grs (*) +/- 10 to 50 grs (*)
Max Production (Unit/Min) 90/60 60/40 40/30

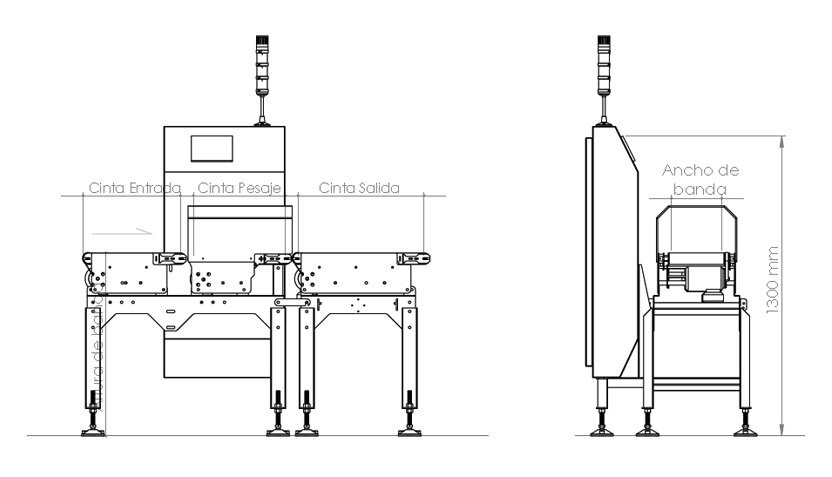

Width “L” (mm) 190-240-290-390 400-600 400-600
Lengths “A” (mm) 450-600 700-900 900-1200
Screen Height (mm) 1300 1300 1300
Working temperature (Cº) 0º to 50º C
IP Protection IP-54 (optional IP-65)
Termination Blasted Stainless steel AISI 304
Supply voltage 3x380V / 50 Hz
Required air pressure 4kg/cm2
Conveyor belt continuous - sanitary - white

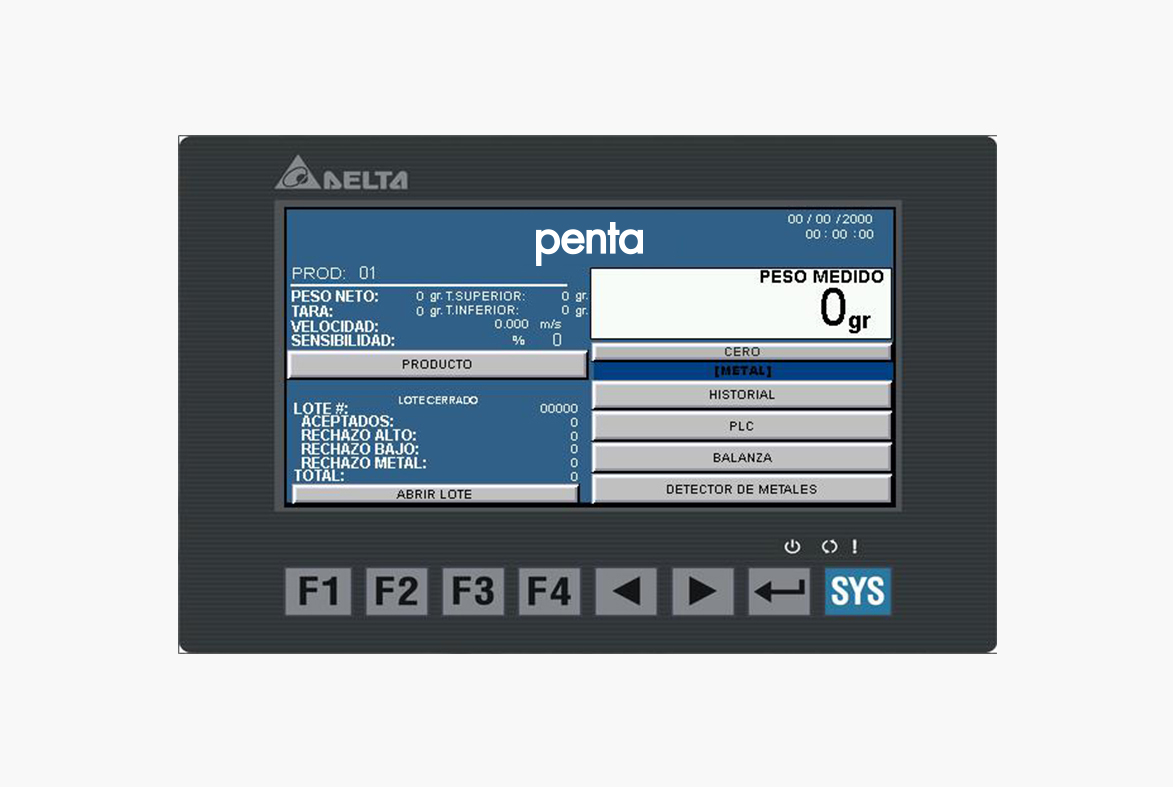

Display and command 8" TACTILE Display (color)

(*) Final operational accuracy will depend on product weight and production speed.

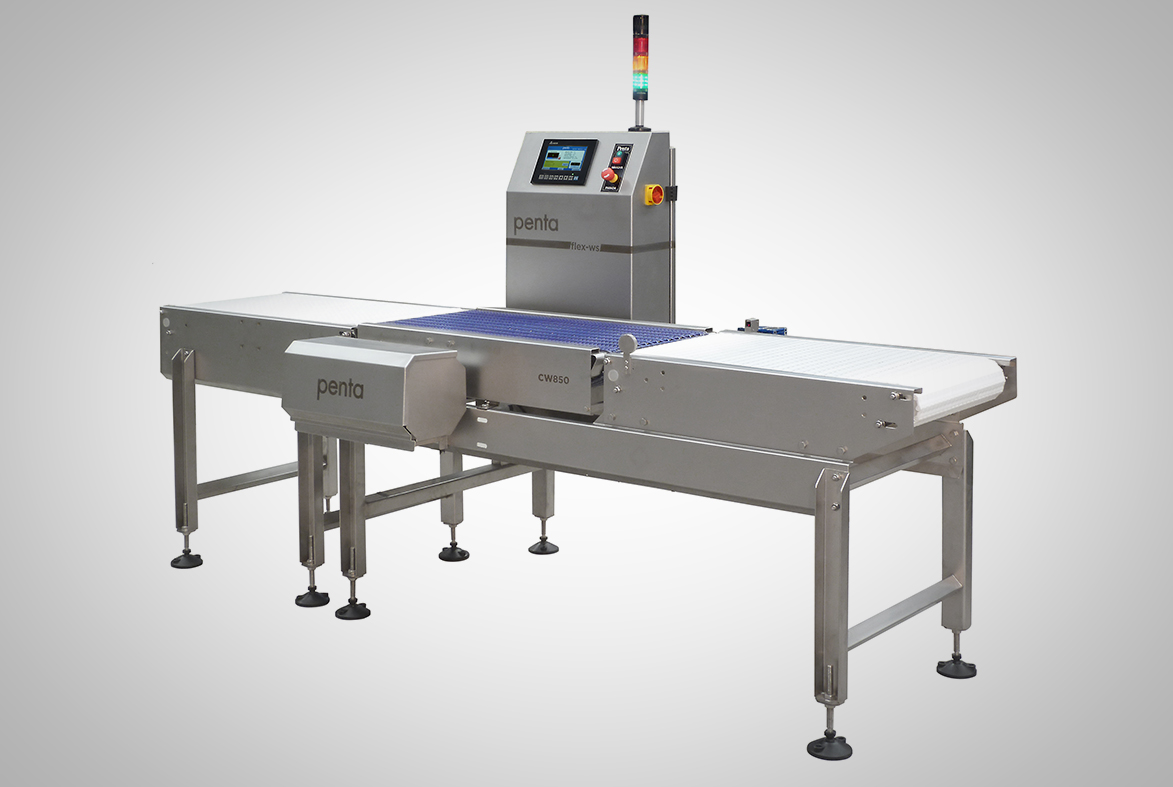

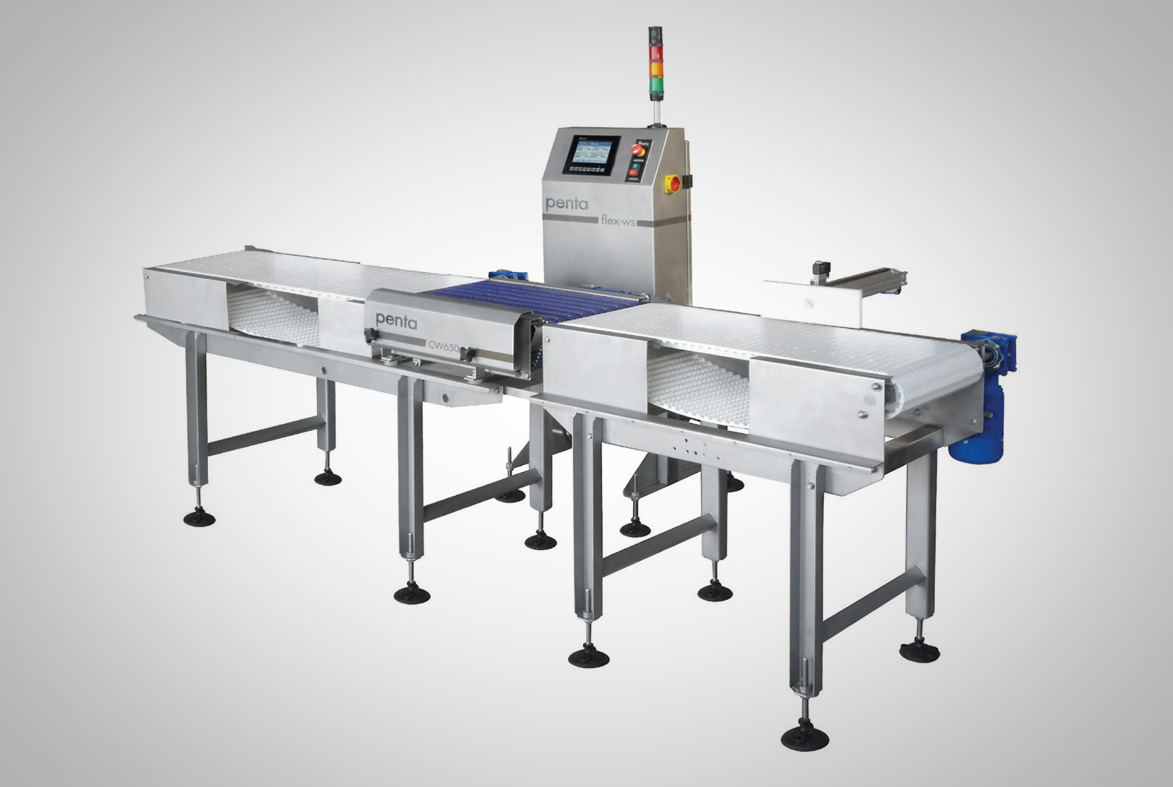

360° View

Keep the mouse pressed on the image and rotate the pointer to visualize our equipment at 360°.
