Metal detection
flexanular | freefall
High sensibility metal detector for inspection of products transported by gravity
- Compact design
- Suitable to work under HACCP and ISO 22000 regulations
- Entirely built according to AISI 304
- A standard duct of 4, 6 and 8 inches

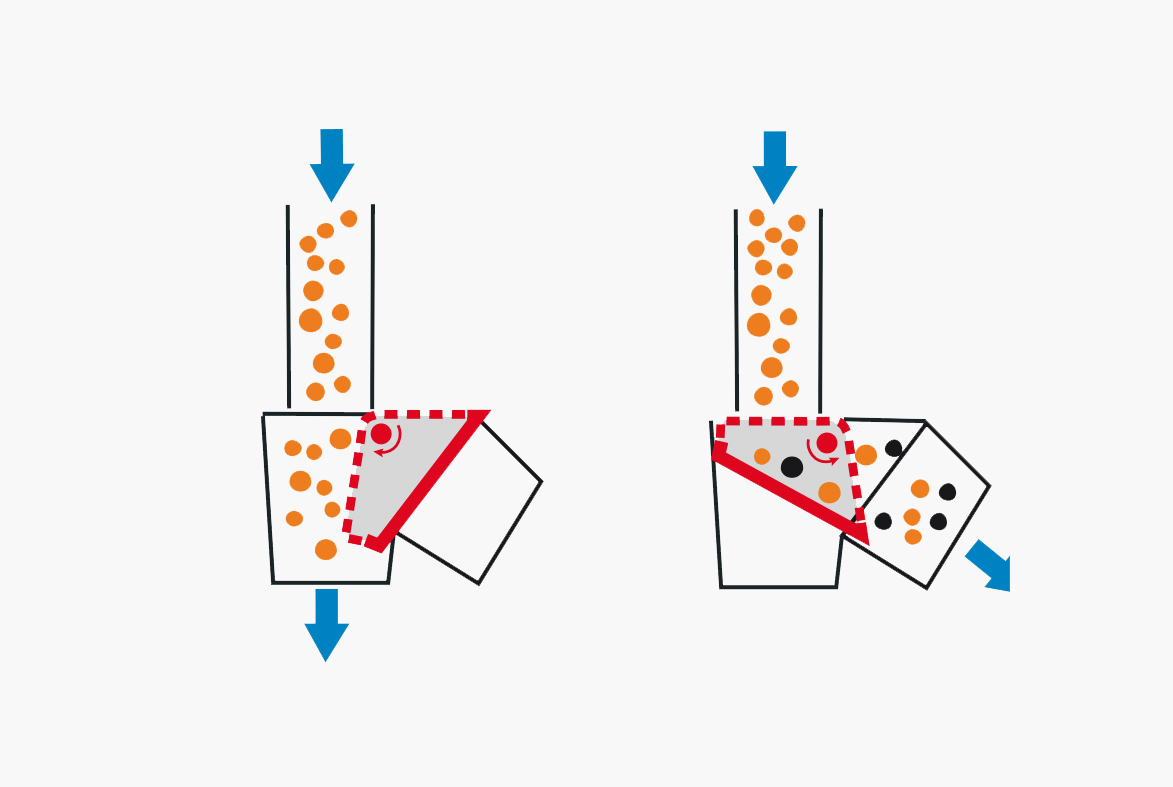

- Automatic separation system type of trousers

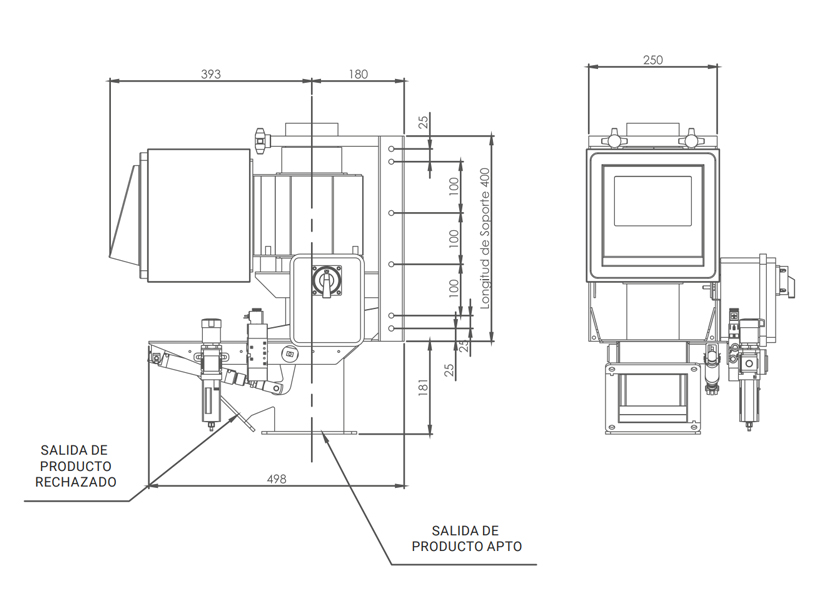

Fact sheet 115
High sensibility metal detector for inspection of products transported by gravity Optional: Display and remote command for better accessibility and protection in stall cabinet (IP67).
SPECIFICATIONS
| Standard Duct | Acrylic / PE of 4” (*) |
| External Finish | Blasted AISI 304 stainless steel |
| Protection | IP-65 |
| Screen | 128x64 px LCD with LED backlight |
| Keyboard | Alphanumeric membrane, bubble type |
| Alarm | Sound (siren) |
| PLC | 3 relay outputs |
| Connectivity | Bluetooth / ModBus / RS485 |
| Operating Temperature | 0º to 50º C |
| Power Supply Voltage | 100 to 230v - 50/60 Hz |
SEPARATION SYSTEM (115)
| Model | SEM 100 |
| Drive Pant Type | Pneumatic |
| Required Air Pressure | 4 bar |
| Required Space | 200 mm |
(*) Value corresponding to Model 170. May vary depending on the type of duct requested by the customer.

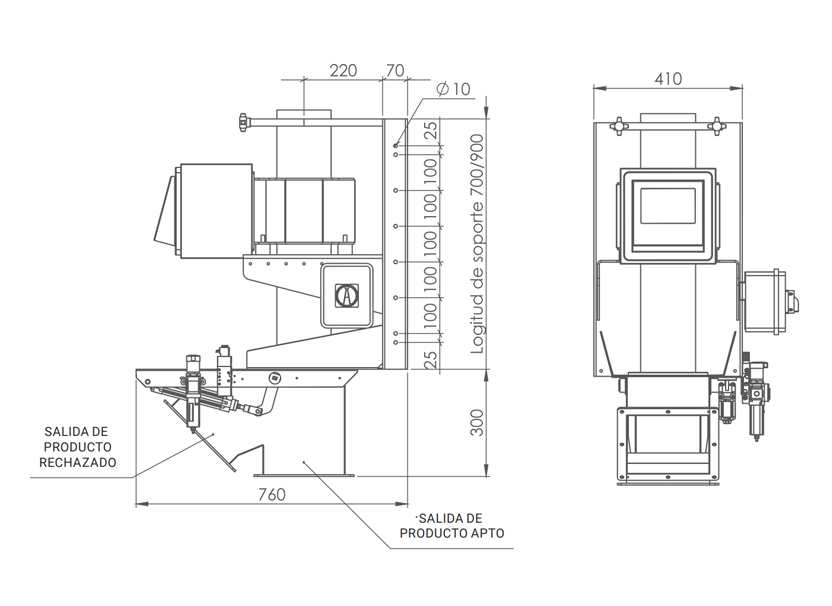

Fact sheet 170/220
High sensibility metal detector for inspection of products transported by gravity Optional: Display and remote command for better accessibility and protection in stall cabinet (IP67).
SPECIFICATIONS
| Standard Duct | Acrylic / PE of 6” and 8” (**) |
| External Finish | Blasted AISI 304 stainless steel |
| Protection | IP-65 |
| Screen | 128x64 px LCD with LED backlight |
| Keyboard | Alphanumeric membrane, bubble type |
| Alarm | Sound (siren) |
| PLC | 3 relay outputs |
| Connectivity | Bluetooth / ModBus / RS485 |
| Operating Temperature | 0º to 50º C |
| Power Supply Voltage | 100 to 230v - 50/60 Hz |
SEPARATION SYSTEM (170/220)
| Model | SEM 200 |
| Drive Pant Type | Pneumatic |
| Required Air Pressure | 4 bar |
| Required Space | 300 mm |
(**) Value corresponding to Model 220. May vary depending on the type of duct requested by the customer.
360° View
Keep the mouse pressed on the image and rotate the pointer to visualize our equipment at 360°.
