Metal detection
Flexanular | PipeLine

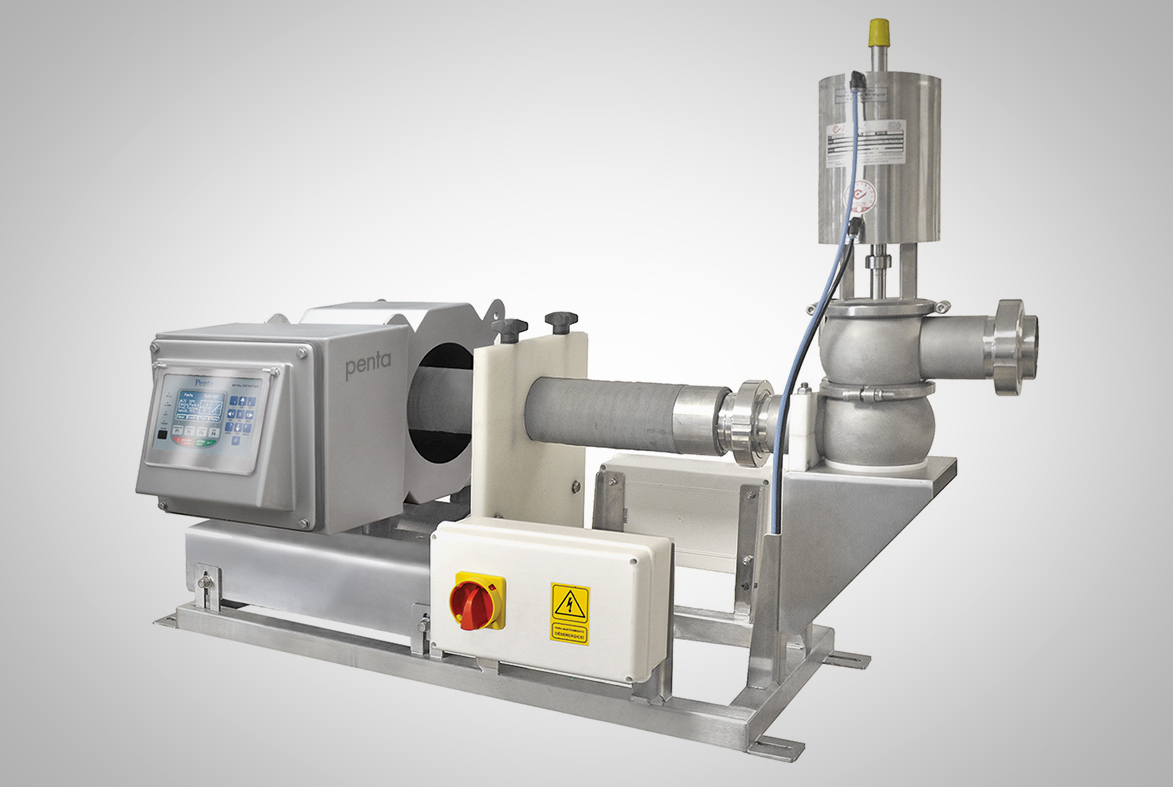

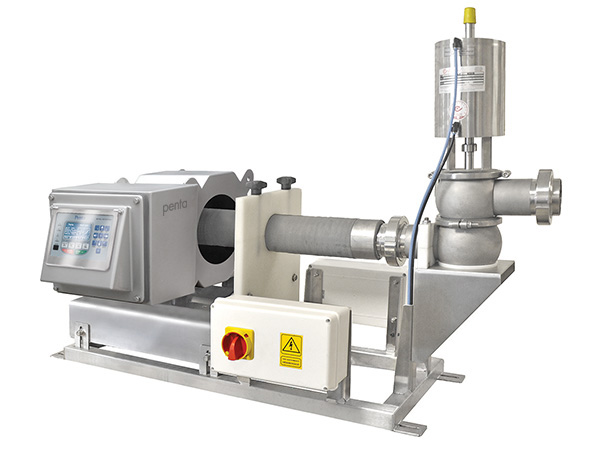

High sensibility metal detector for inspection of pumped products.
- Robust and sanitary design
- Suitable to work under HACCP and ISO 22000 regulations
- Entirely built according to AISI 304
- A standard duct of 2, 3 and 4 inches

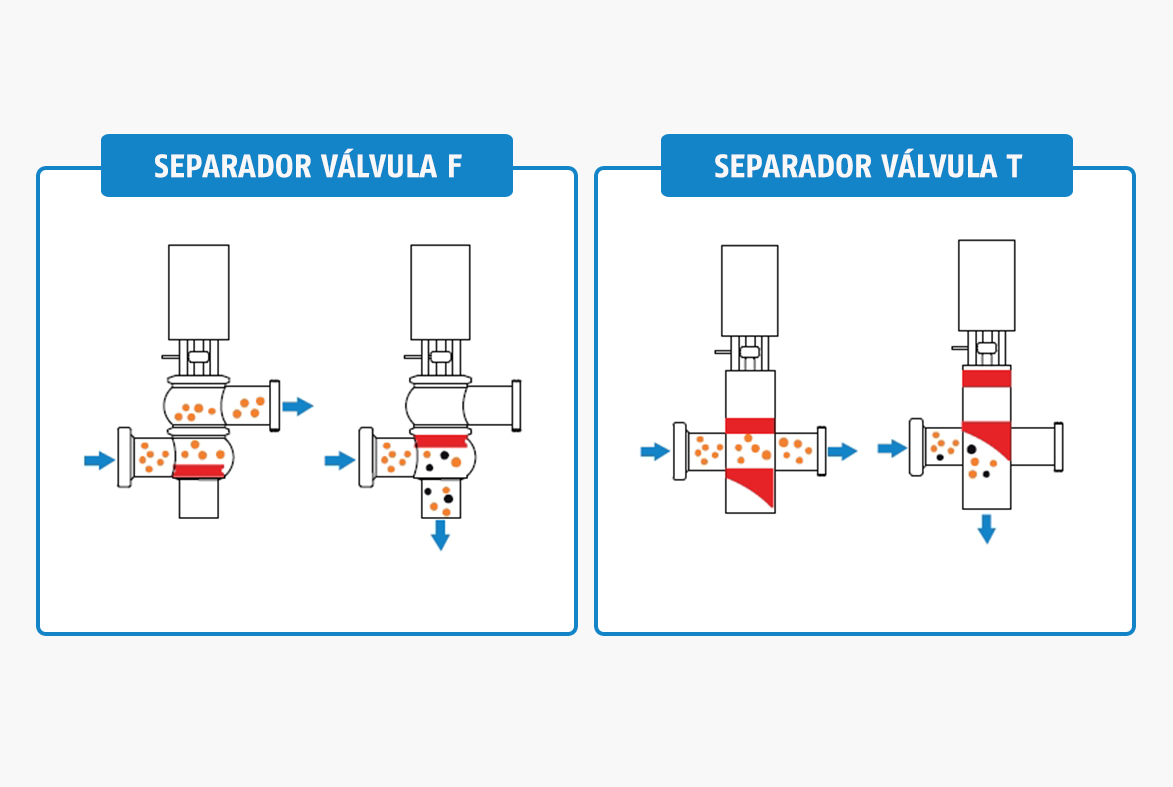

- Automatic separation system through sanitary valves
Supplements:
Fact Sheet
SPECIFICATIONS
| Standard ducts | 2” - 3” - 4” |
| Exterior finish | Stainless steel AISI 304 |

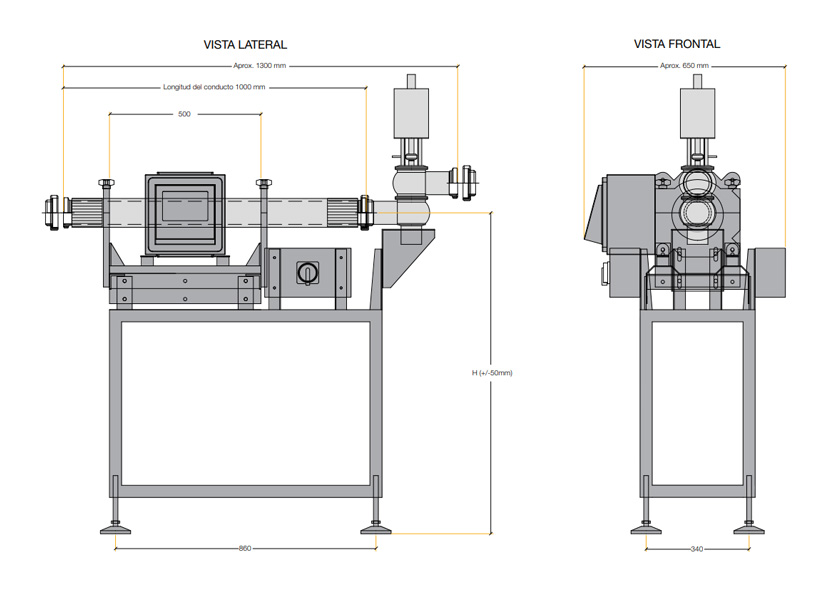

| Height to duct centre (H) | 500mm to 1200mm |
| Protection | IP-65 |
| Display | LCD of 128x64 pixels with backlight to led |
| Alarm | Sound (siren) |
| PLC | 3 relay outputs |
| Connectivity | MODBUS TCP / RS485 / RS422 / RS232 |
| Working temperature | 0º TO 50º C |
| Supply voltage | 100 to 230 V - 50/60 Hz |
| Rejection system (3-way sanitary valve) | 2” - 3” |
| Pneumatic control system | Contents in watertight cabinet |
| Required air pressure | 4 bar |
| Optional | IP67 remote head | IP67 remote electric and pneumatic panel |
