The most compacted and economic option of the market for a wide product control at the end of the line.
|MODELS||LIGHTWEIGHTCW 450L - CW 600L||MEDIUMCW 700M -CW 900M||HEAVYCW 900P - CW 1200P|
|Weighing range (Kgs)||0 to 4 kgs||4 to 10 kgs||10 to 50 kgs|
|Accuracy (grs)*||+/- 2 to 5grs (*)||+/- 5 to 10 grs (*)||+/- 10 to 50 grs (*)|
|Max Production (Unit/Min)||90/60||60/40||40/30|

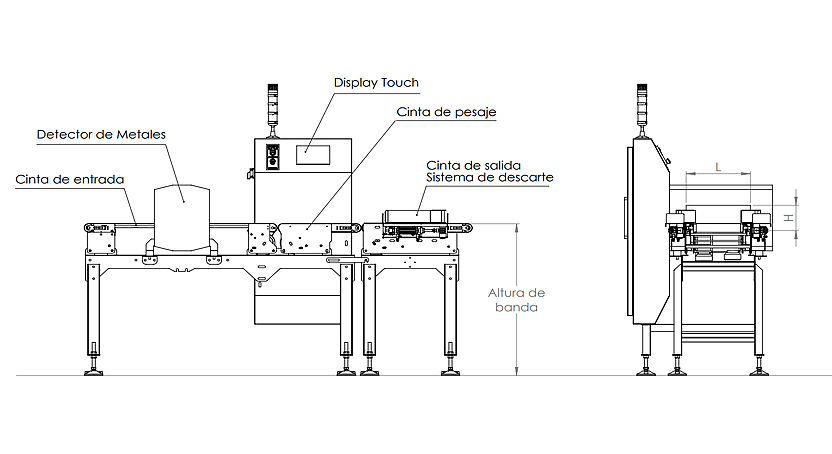

|Width “L” (mm)||190-240-290-390||400-600||400-600|
|Lengths “A” (mm)||450-600||700-900||900-1200|
|Screen Height (mm)||1300||1300||1300|
|High window detector (mm)||100-150-200-250||200-250-300-350||300-350-400-450|
|Detector window width (mm)||200-350-500||500-650||500-650|
|Working temperature (Cº)||0º to 50º C|
|IP Protection||IP-54 (optional IP-65)|
|Termination||Blasted Stainless steel AISI 304|
|Supply voltage||3x380V / 50 Hz|
|Required air pressure||4kg/cm2|
|Conveyor belt||continuous - sanitary|

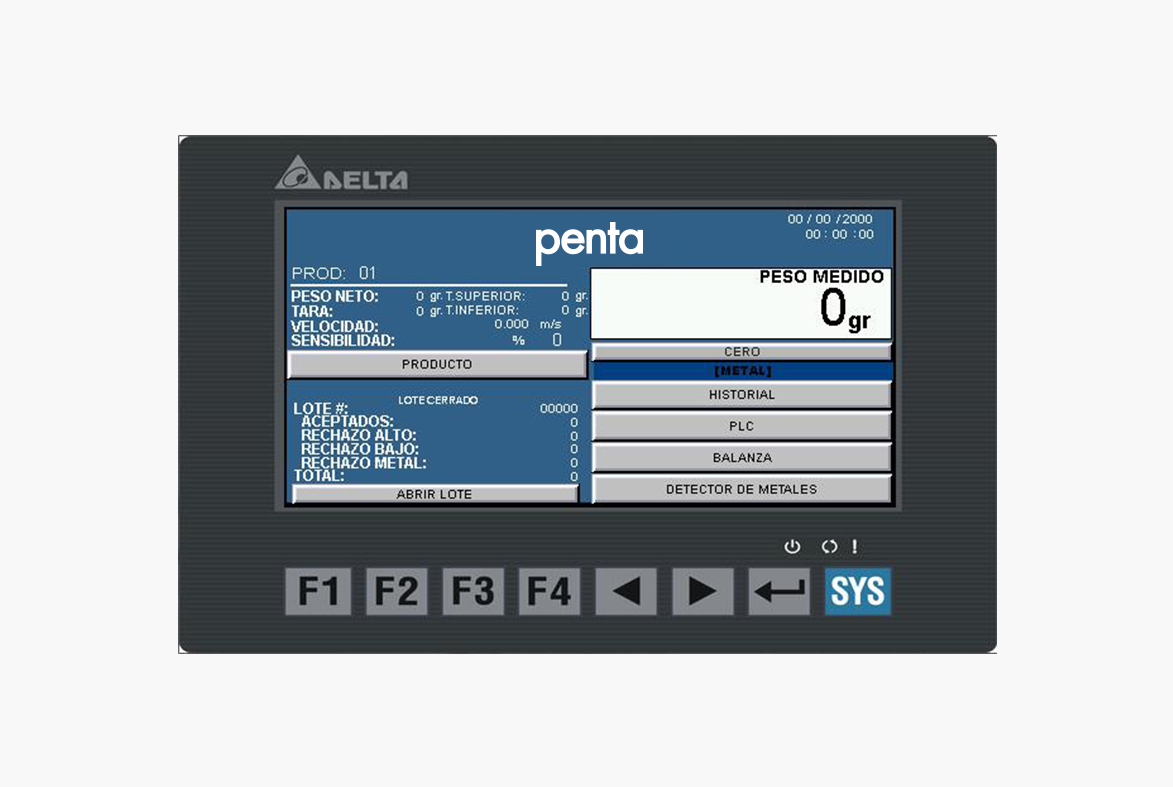

|Display and command||8" TACTILE Display (color)|
(*) Final operational accuracy will depend on product weight and production speed.
