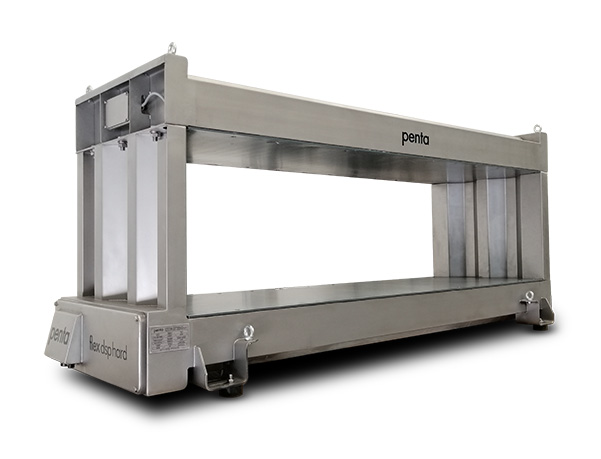

Metal detector

flexhard

Robustness and high technology are combined in this model to guarantee efficient control in the environment and very demanding work conditions.

  • Robustness
  • Removable and easy to install
  • Detect all kinds of metal
  • Display and remote command for better accessibility and protection in stall cabinet, protection IP67

Main characteristics:

This metal detector ensures maximum protection in the mining industry and in all those which need to safeguard mills, crushers, extruder, laminators, and presses of the damages which can cause the metallic participles which accidentally detached from the productive process.

  • Initiating routine with total self-calibration
  • Self-learning programming
  • Product changes monitoring
  • Analogy converters adaptive non-saturated
  • Vectoral analysis of pollutions
  • Flash memory program
  • Detection register, events, and checking
  • Possibility of distant command
  • Four access level with password

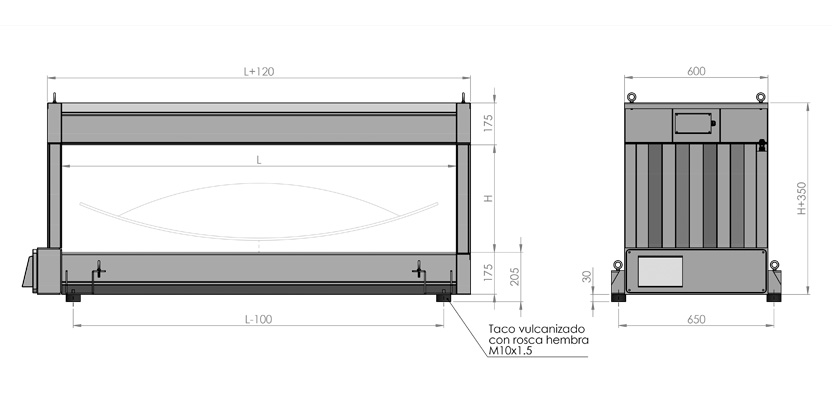

SPECIFICATIONS
Standard height (mm) (H)* 350 - 400 - 450 - 500
Standard width (mm) (L)* 750 - 950 - 1250
Exterior finish Blasted Stainless steel AISI 304
Protection IP-54 / IP-65

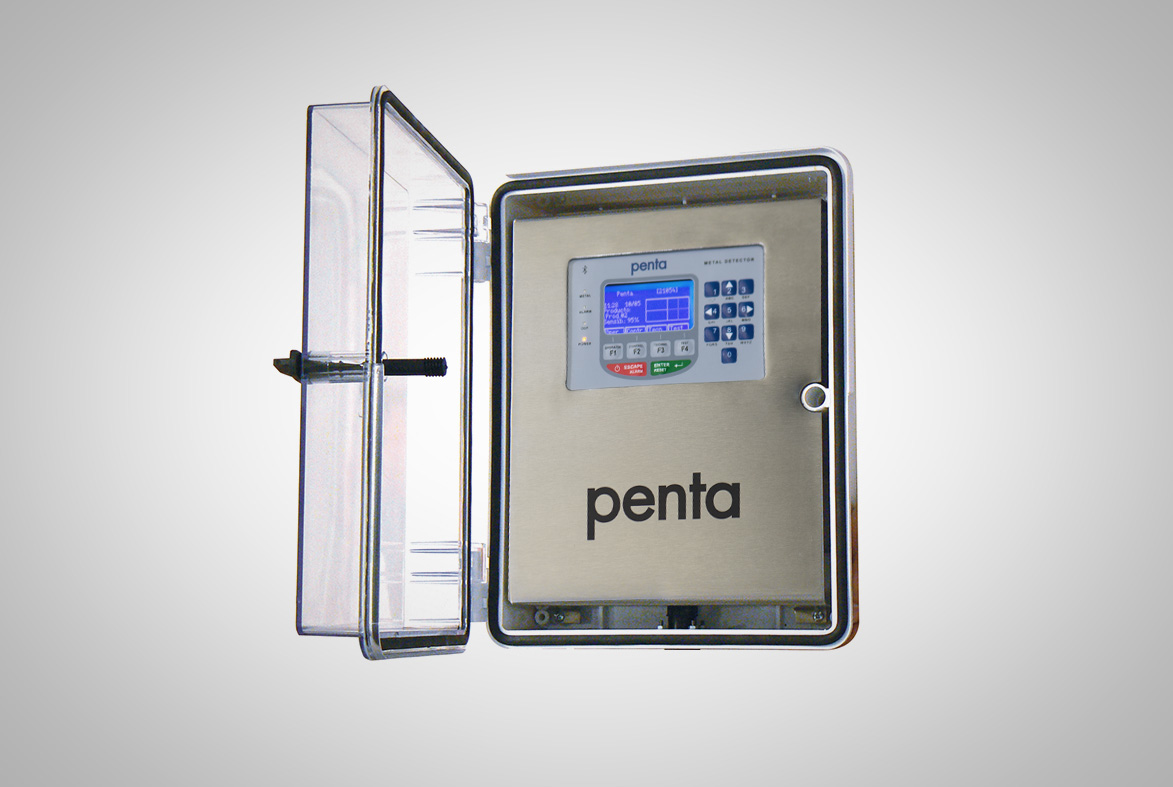

Display 128x64 pixels LCD with led backlight
Keyboard Alphanumeric with bubble membrane
Alarm Sound (siren) and/or visual (tower beacon)**
PLC 3 relay outputs
Connectivity MODBUS TCP / RS485 / RS422 /RS232
Working temperature -10º a 50º C
Supply voltage 100 to 230v - 50/60 Hz
Air pressure for rejection system 4 bar

* Ask for special measures

** Optional available for equipment with conveyor
