Metal detector for liquid products with a metallic cover

flexdbc II

High sensibility metal detector for inspection of liquid products with metallic cover transported by conveyor belt.

  • Operating temperature ranges from minus 10° to 50°C
  • The LCD screen of 128x64 px with blacklight led
  • Standard manufacture in stainless steel AISI 304/316
  • IP65 Protection

Fact Sheet

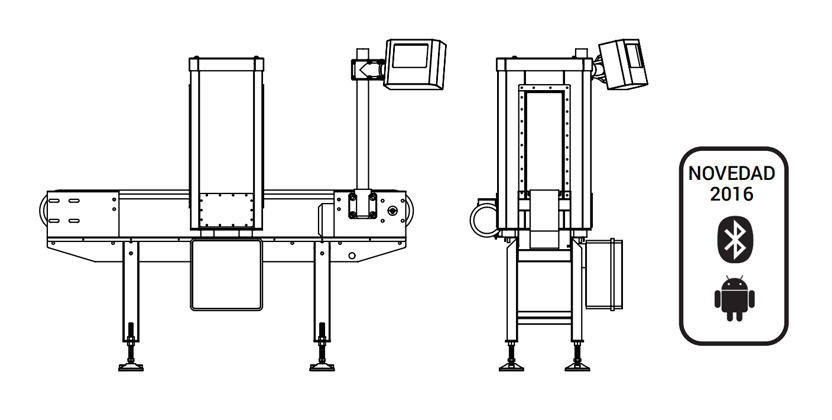

SPECIFICATIONS
Standard height (mm) (H) 450
Standard width (mm) (L) 150
Exterior finish Stainless steel AISI 304/316
Protection IP-65
Display 128x64 px LCD with backlight to led
Keyboard Alphanumeric with bubble membrane
Alarm Sound (siren) and/or visual (tower beacon)
PLC 3 relay outputs
Connectivity MODBUS TCP / RS485 / RS422 / RS232
Working temperature -10º a 50º C
Supply voltage 100/230 V - 50/60 Hz
NOVELTY Container inspection with metal lid and Bluetooth connectivity
